Description

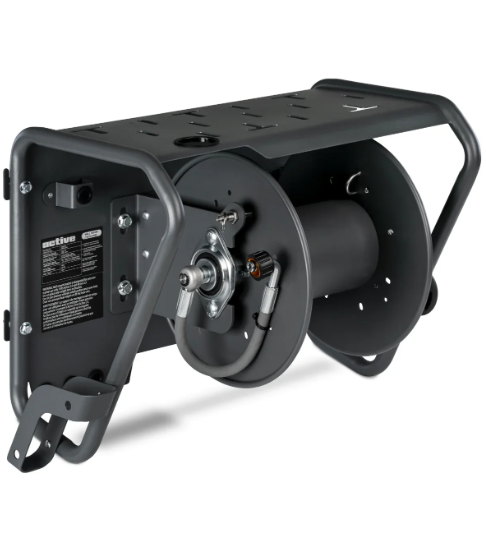

The Active Premium hose reel and wall mount combo solution was developed using consumer feedback, preferences and industry expert guidance.
This package includes a hose reel capable of storing up to 30m of 3/8' hose and 45m of 5/16' hose, a wall mount cage with dedicated slots for pressure washer gun, foam cannon, lance and 4 nozzles. A 16” backing plate for safe mounting on the wall and a 5/16” diameter jumper hose with an M22-14mm connector for installation with the pressure washer.
The solution aims to be an integral accessory to the car wash experience in your garage, which ties in the Active pressure washer range to the active accessory bundle and completes the set of products for an integrated wash experience.
Technical Specs:
Hose Reel
Inlet fitting: 3/8” QC female coupler
Outlet fitting: M22x14mm
Extension hose pre-installed
Reel rotation lock: release lock pin before turning the reel
Hand crank: customer need install hand crank and lock by pin
Hose clamp: customer needs to make adjustment to secure hose
Stainless steel (304) reel valve
Metal frame
Hose reel is pre-installed on frame
Customer installation is required for wall mount mode
Customer installation required for gun holder and fasten by screw
Customer adjustment is required for hose clip
Hardware
4pcs 6x30 mm screws to fasten mounting plate on the wall
4pcs M8x 20mm bolts to secure wall mount to mounting plate
2pcs M5x14 bolt to secure gun holder on frame
Accessories
Hand crank with lock pin
Mounting plate
Gun holder
Hardware kit
Jumper / lead hose to pressure washer (M22 x 14mm - female)
Measurements:
Hose reel
Outer disc diameter: 300 mm
Inner barrel diameter: 120 mm
Reel width: 200 mm
Max. accommodate hose: 5/16” pressure hose, 100 ft
Metal cage
Width * Depth * Height (mm): 525 x 350 x 405
Mounting plate bolt holes layout: 16 inches x 5.6 inches x Φ8.0mm
Max loading capacity: 40kg
